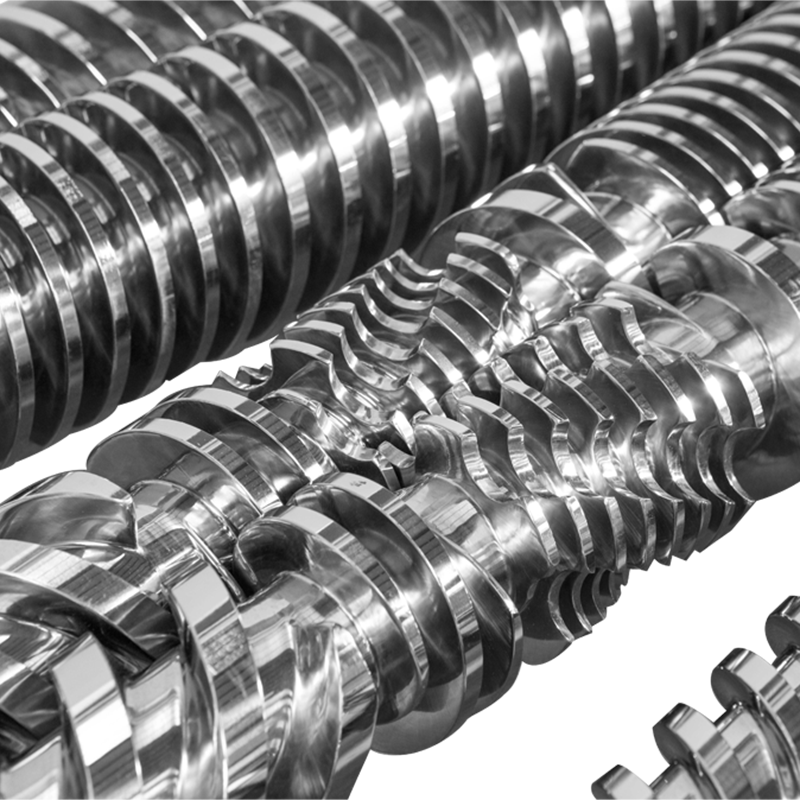

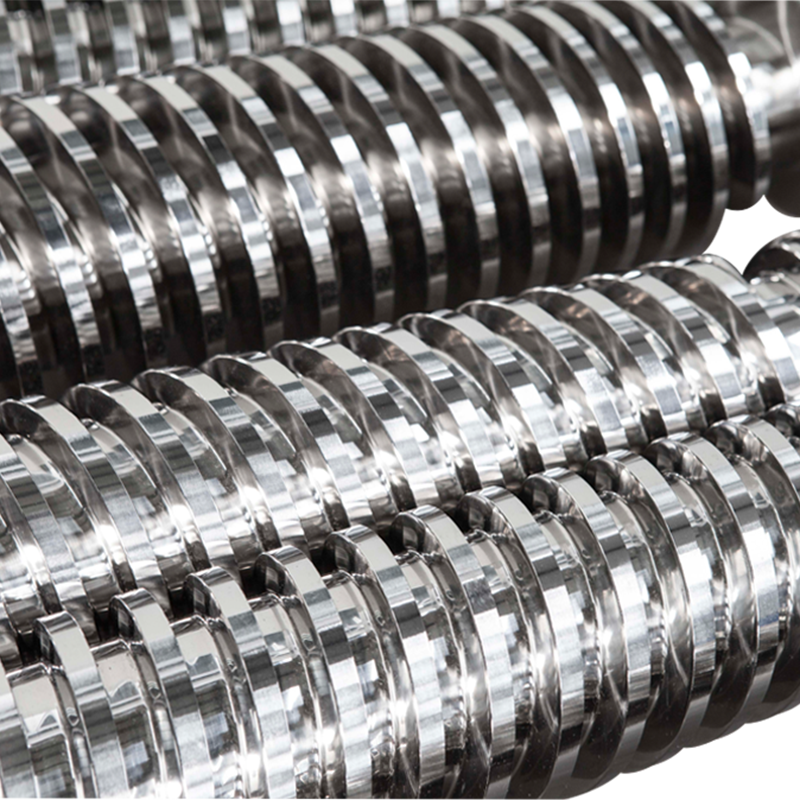

Conical Twin Screw & Barrel

1. Meaterial:38CrMoAIANitriding treatment,Surface hardness:HV≥900Nitriding depth:0.5-0.8mm
2. Base material:38CrMoAlA A, a Special alloy is welded on the flight of the screw, prolonging the life of the screw.
3. Easy-wearing parts of the barrel made from anti-wear alloy can be abrasive performance.

Product Details
For a good plasticizing effect, we have different designs of screw barrels to meet customer's demands.
Gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, mixed type, double-head type, three-head type, multi-head type, etc.
Refer to the following specification and small part be designedaccording to the compression ratio:φ15/φ30,φ25/φ55 , φ35/φ75,φ40/φ83,φ45/φ90-99,φ48/φ112-117,φ50/φ105110,φ51/φ105-120,φ55/φ110-125,φ58/φ125,φ60/φ125129,φ65/φ120-132,φ68/φ147,φ70/φ150,φ74/φ156-162φ80/φ143-156-162,φ86/φ177,φ92/φ184-188,φ95/φ193φ105/φ203
scope of application :WPC PVC.WPC PE,Super high molecularsheet,1/2 high Calcium buckle,50-400 high Calcium pipe,50-300 high Calcium Profile,soft PVC sheet,XPs -PVC etc.
PP、PE、ABS、PVC, raw material, pelletizing, pipe, profile, sheet, etc.

Screw&barreluse material

Raw material

The finished product processing requirements

38CrMOAIA,SACM645

Nitriding treatment

Cr12MoV,Cr12

Alloy steel

38CrMOAIA,SACM64540Cr,AISI4140,42CrMo

Bimetallic of the inner hole centrifugal casting

GHII3

nature hard after high temperature


scope of application: WPC PVC.WPC PE, Super high molecular sheet,1/2 high calcium buckle,50-400 high Calcium pipe,50-300 high Calcium Profile, soft PVC sheet, XPs -PVCetc.
PP、PE、ABS、PVC, raw material, pelletizing, pipe, profile, sheet, etc.

For Pipe (WPC) Extrusion

Model

motor power(kW)

screw dia. (mm)

screw rotation speed (rpm)

PVC(kg/h)

DMJ45/90

15

45/90

34.7

60-80

DMJ50/105

18.5

51/105

34.7

80-100

DMJ55/110

22

55/110

34.7

120

DMJ65/132

30-37

65/132

34.7

150-250

DMJ80/156

55

80/156

34.7

250-400

DMJ92/188

110-132

92/188

34.7

500-700


For Pipe Extrusion

Model

motor power(kw)

screw dia.(mm)

screw rotation speed(rpm)

PVC(kg/h)

DMJ45/90

15

20

45

100

DMJ50/105

18.5

45/90

45

120

DMJ55/110

22

51/105

45

150

DMJ65/132

37

55/110

45

250

DMJ80/156

55

45

34.7

450

DMJ92/188

110

150

34.7

800

Raw material

The finished product processing requirements

38CrMOAIA,SACM645 .42CrMMo

Nitriding treatment

42CrMo, AISI 4140

Hard chrome-coated layer

4Cr5MoSiV1,SKD-61,SKD-11

Spraying bimetal alloy layer and nitriding treatment

HPM38,SI36,SUS440,9Cr18MoV

high-frequency quenching

GHII3

nature hard after high temperature
