Screw For Injection Molding Machine

25-38000KN clamping force30g-50000g injection unit
For a good plasticizing effect, we have different designs of screw barrels to meet customer's demands.
Gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, mixed type, double-head type, three-head type, multi-head type, etc.
FA.Powder alloy steel screw -ASP60、ASP30、ASP25 ,T15
B.bimetal cladding screw: parent material -YPT72, DAC-MAGIC, 4 Cr5MoSiV1
3-1 ceramics screw and Application: - plus fiber,- fire retardant, flame retardant engineering plastics, ceramic, magnet powder
B-2 - magnet powder screw and application: - plus fiber, fire retardant, flame retardant engineering plastics, ceramic, magnet powder
B-3 - halogen-free materials screw and application: - super wear resistance, high corrosion resistance suit for halogen-free + 50%Gf materials use.
B-4 PTFE(Polytetrafluoroethylene ) special screw and application: - 300 degrees to 1200 degrees high-temperature wire high-temperature pipe and other products production
B-5 - nitrogen Teflon special screw and application: - resistance to acid and anti-corrosion function
C---imported alloy steel hard screw and application
C-1; EFZD alloy steel hard alloy screw
C-2: DC53 full hard screw
C-3; SKH-9 / 51 ( M2, W6 ), SKH-55 ( M35 ), SKH-59 ( M42 ), W18Cr4V, YXMI alloy steel hard screw
C-4; SKD61, SKD11 alloy steel hard screw
C-5; GH113 [ new ] full hard steel t applied to tetrafluoroethylene ( Telon F46 ) 300"-1200" high-temperature wire, pipe, and other products
D-stainless steel screw: Use Japan raw material HPM38, S136, SUS440.9cr18mov.etc.

Identify that processing materials, hardness HRC, equipment rigid (value), quantity, can according to graph according to kind grinding molding Angle and requirements size tolerance. A batch is the production, can completely replace the international products, with the high ratio!
With an advanced comprehensive production system, has all kinds of precision technology production processing ability and achieves high efficiency, and low cost of applications.
From six-axis, seven-axis CNC processing of linkage (class A) high-end products to three-axis, four-shaft production (grade B) end products, different levels of quality and price. Professional alternative industrial goods, special, non-standard, unique shape, and new products, high ratio of performance in large quantities of research and development, production and processing, according to graph according to kind design improvement, can greatly reduce the comprehensive cost!

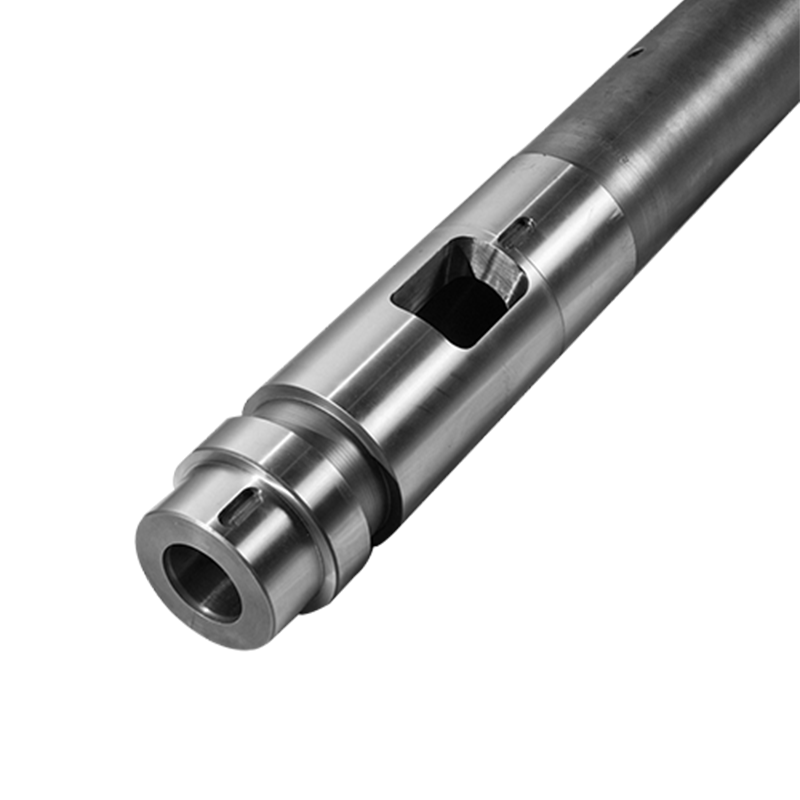

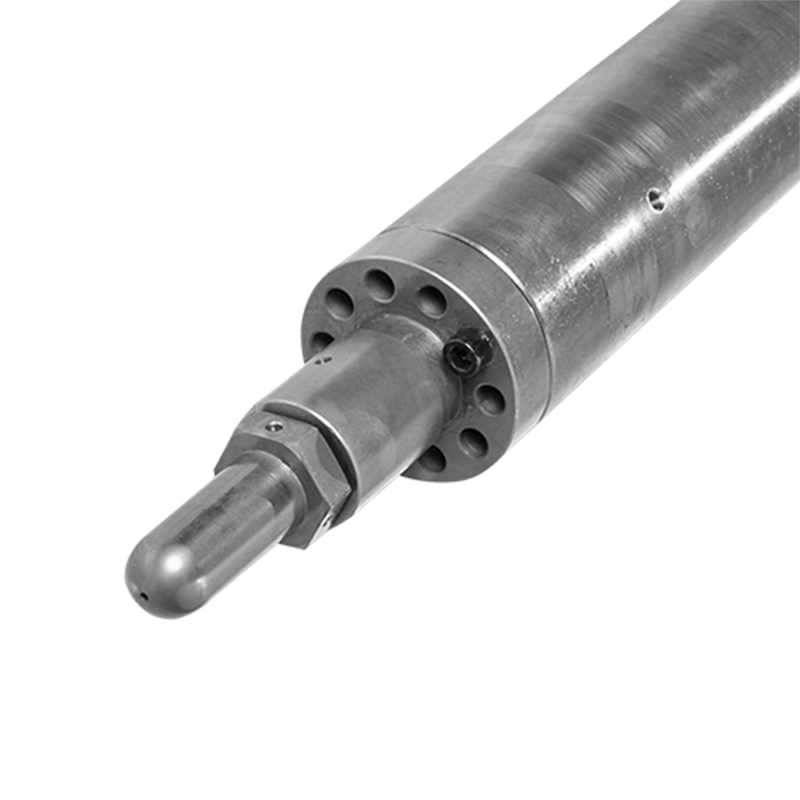

Materials used for screw barrels
Raw material	The finished product processing requirements
38CrMOAIA,SACM645	Nitriding treatment
Cr12MoV ,Cr12	Aloy steel
38CrMOAIA,SACM645,40Cr,AISI4140,42CrMo,	Bimetallic of the inner hole centrifugal casting
GHII3,GH132/GH2132/A-286;GH145/nconelX-750;GH143;GH169/nconel718;GH3030 ; GH5K ;	[New No.3 Steel] High-temperature alloy; 300-1400 degrees, natural hardening during high-temperature operation



Amount of injection (g)	Screw diameter×length (mm)	Barrel diameter×length (mm)	Amount of injection (g)	Screw diameter×length (mm)	Barrel diameter × length (m)
30-90	φ30×90	φ85×860	800-1250	φ75×1825	φ170×1725
60-125	φ35×910	φ85×860	1000-1500	φ80×2000	φ180×1805
100-150	φ38×935	φ95×900	1250-2000	φ85×2300	φ190×1900
125-160	φ40×980	φ95×910	2000-3000	φ90×2700	φ210×2000
125-300	φ42×1030	φ105×8880	2500-5000	φ100×2600	φ230×2405
250-400	φ45×1210	φ115×1165	3000-6000	φ110×2600	φ256×2590
300-500	φ50×1300	φ125×1260	4000-10000	φ120×2800	φ256×2800
450-600	φ55×1335	φ130×1320	6000-8000	φ130×3010	φ256×2970
500-700	ф56×1350	φ130×1350	8000-10000	φ145×3010	φ256×3200
500-700	φ60×1380	φ140×1350	10000-15000	φ160×3500	φ270×3200
650-800	φ65×1415	φ150×1420	13000-25000	φ170×3415	φ317×3380
700-1000	φ70×1790	φ160×1685



Raw materials: Sweden's Yishengbai, Germany's Sister, Austria's Belo, Japan's Hitachi, France's Oberdoua,USA's Finkel, Germany's Thyssen, Japan's Datong,Japan's Hitachi, Japan's Nippon Steel, Japan's High-Frequency Steel, Japan's Toho, etc., Japan's Fujitsu	The finished product processing requirements
38CrMOAIA,SACM645，42CrMo	Nitriding treatment
42CrMo .AISI 4140	Hard chrome-coated layer
Cr12MoV, SKD11, SKD61, YXMI,EFZD, DC53, SKH55. SKH59SKH58, SKH51, SKH--9,ASP60, ASP30,ASP25. CW6Mo5Cr4V2.4Cr5MoSiV1, SKD-61.SKD-11	High-frequency quenching
4Cr5MoSiV1,SKD-61.SKD-11.	Spraying bimetal alloy layer and nitriding treatment
YPT72 , DAC-MAGIC , 4 Cr5MoSiV1 ,	whole bimetallic cladding stainless steel
HPM38.SI36.SUS440.9Cr18MoV,	high-frequency quenching
GHII3,GH132/GH2132/A-286;GH145/nconelX-750;GH143;GH169/Inconel718;GH3030;GH5K;	High temperature alloy [new No.3 steel] 300-1400 degrees, naturally hardened during high-temperature operation
